GT-440
Asset Type Tag
Coming soon
Description
The GT-440, introduced by GIPS Technology, is a UWB positioning tag supporting TDoA/ToF modes, designed for equipment or asset tracking. Ideal for asset tracking applications in factories, healthcare, logistics, and more.
Specifications
UWB Frequency
- Low Band：3.5GHz-6.5GHz (UWB CH2/CH3)
- High Band：6.5GHz-8GHz (UWB CH5/CH9)

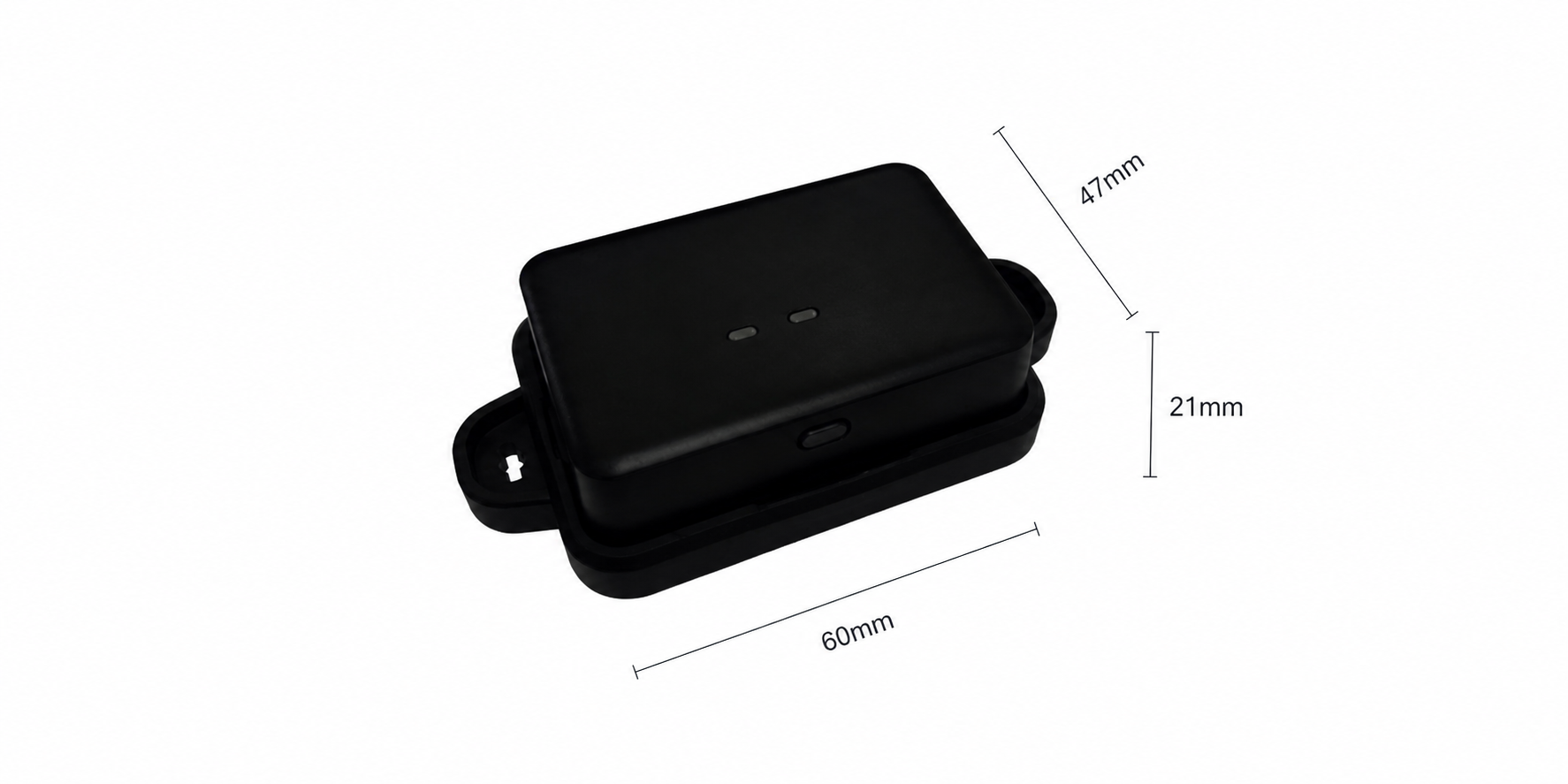

Dimensions (mm)
67 mm x 47 mm x 21 mm (Without mounting hole)
Weight
75 g
Operating Temperature
-20°C ~ 60°C
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Power Supply
CR2 Lithium 3V
External I/O
1 x Function Button
LED Indicator
- 1 x System Status (Charging/Location)
- 1 x Flash Alert
Battery Life
- ToF：>6 month@0.1Hz w/ smart sleep
- TDoA：>12 month@0.1Hz w/ smart sleep
Functions
- Smart Sleep
- Motionless Detection
- Flash Issuance
- Buzzer Issuance
