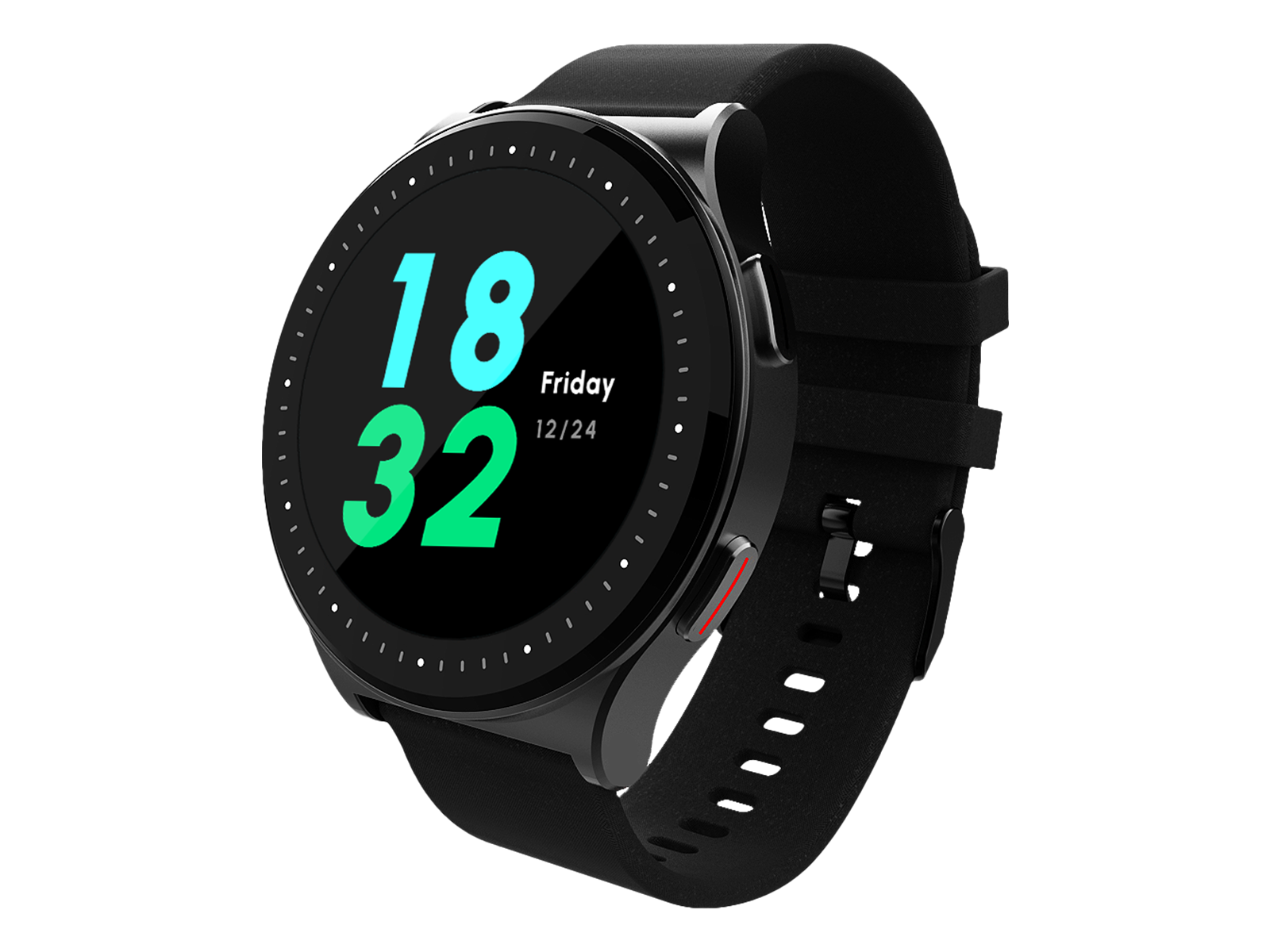

GT-320

Watch Type Tag

Supports TDoA/ToF modes, offering vital sign data, screen interaction, and more, providing diverse application scenarios for positioning environments.

Description

The GT-320, a wristwatch-style UWB positioning tag introduced by GIPS Technology, supports TFoA/ToF modes, featuring a screen and vital sign data collection capabilities, providing diverse positioning application scenarios. Suitable for various applications in commercial offices, industrial settings, healthcare, logistics, and more.

Specifications

  • Low Band:3.5GHz-6.5GHz (UWB CH2/CH3)
  • High Band:6.5GHz-8GHz (UWB CH5/CH9)

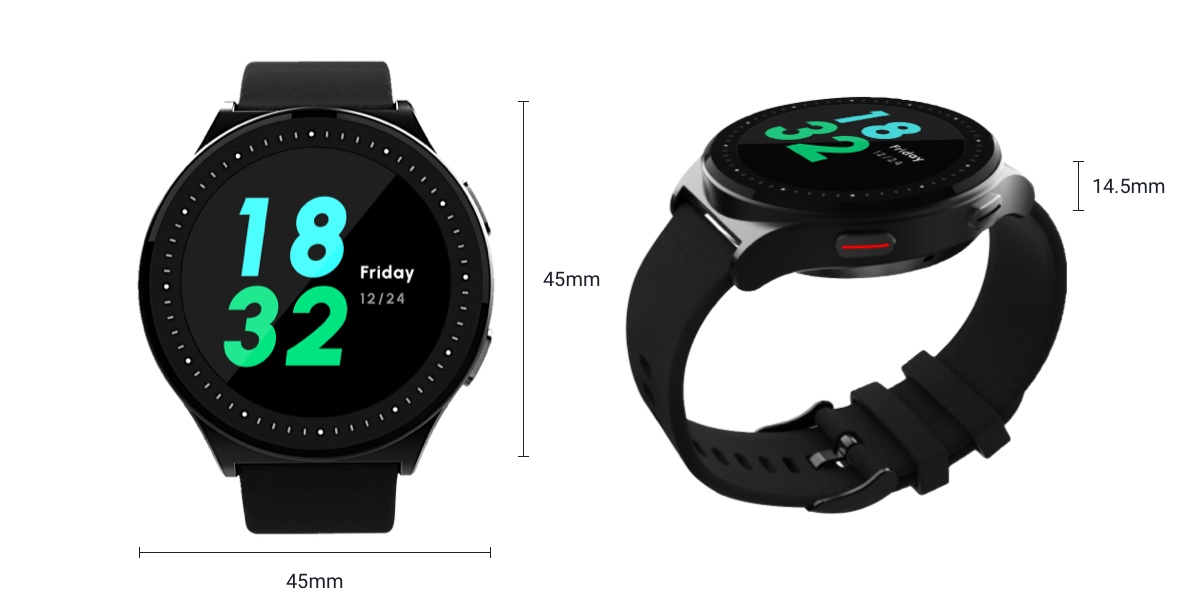

ø45 x 14.5 (wrist band excluded)


45 g


0°C ~ 60°C


40°C @ 95% Relative Humidity, Non-condensing


5V DC-in w/ Magnetic Charging Dock


2 x Function Button


N/A


  • ToF: 1+ Days@1Hz w/ smart sleep
  • TDoA: 2+ Days@1Hz w/ smart sleep
  • Battery life would change according to the screen, vital sign sensor usage

  • SOS alert
  • Smart Rest Mode
  • Vibration
  • Buzzer
  • Message
  • Heart Rate Monitor
  • Blood Oxygen Monitor
  • Activity Monitor

IP X6


1.32-inch TFT Screen, Resolution 360x360


  • FCC: 2A6S5-GT320
  • NCC: CCAN24LP0960T0
  • Telec(JP): 201-240572
