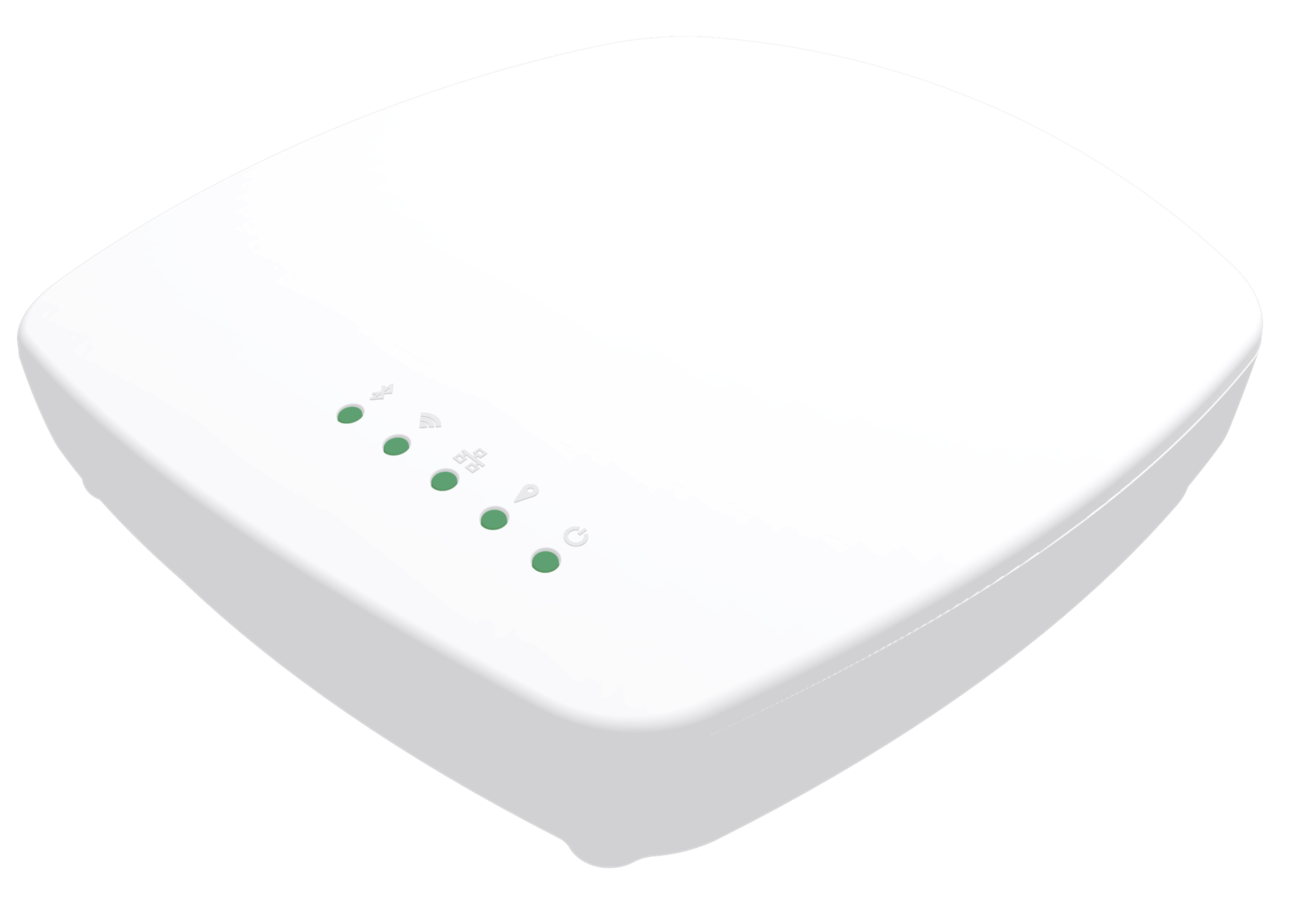

GA-210

UWB Indoor Ancor

Designed for indoor environments, supporting TDoA/ToF modes, it aids clients in establishing a smart positioning infrastructure, enhancing productivity and efficiency.

Description

The GA-210, introduced by GIPS Technology, is a UWB positioning anchor supporting TDoA/ToF modes, integrated into the GIPSense solution. Tailored for indoor settings such as medical facilities, office buildings, logistics centers, and campus environments, this anchor assists clients in establishing the essential infrastructure for smart positioning.

Specifications

  • Low Band:3.5GHz-6.5GHz (UWB CH2/CH3)
  • High Band:6.5GHz-8GHz (UWB CH5/CH9)

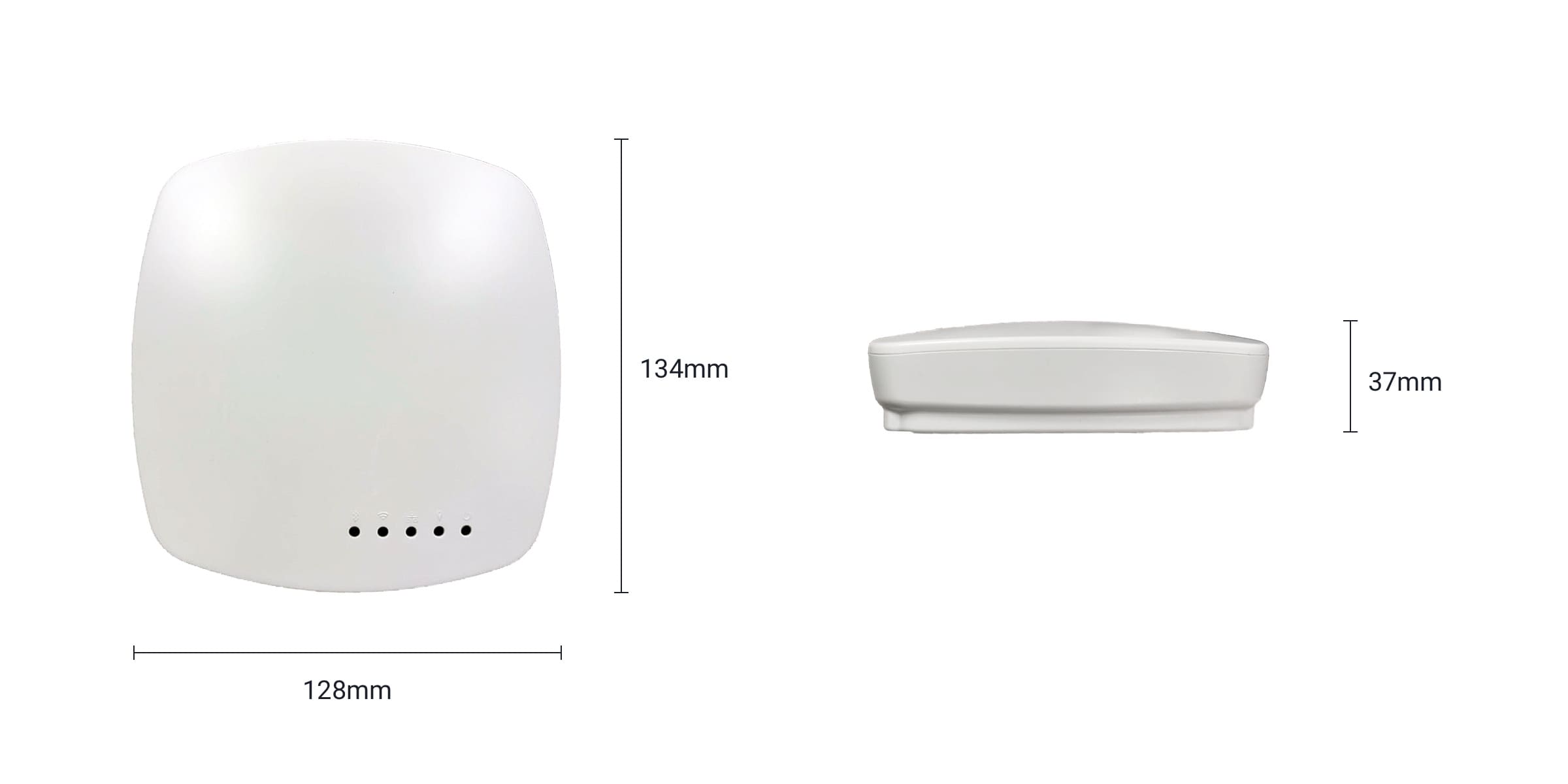

128 mm x 134 mm x 37 mm


250 g


-20°C ~ 65°C


40°C @ 95% Relative Humidity, Non-condensing


  • 5V DC-in
  • Powered LAN (802.3af/at)

  • DC power jack (ø2.0mm)
  • RJ45 connector
  • Reset button

1 x Power, 1 x UWB, 1 x LAN, 1 x Wi-Fi, 1 x BLE


< 1.6W


  • Wall mount
  • VESA 75 x 75

  • GIPS_Anchor_Monitor_v1.0.0 (Windows Application)
  • GIPS_BLE_Monitor_v1.0.0 (Android APP)

  • FCC: 2A6S5-GA210
  • NCC: CCAN22LP0580T0
  • Telec (Japan): 201-220364
