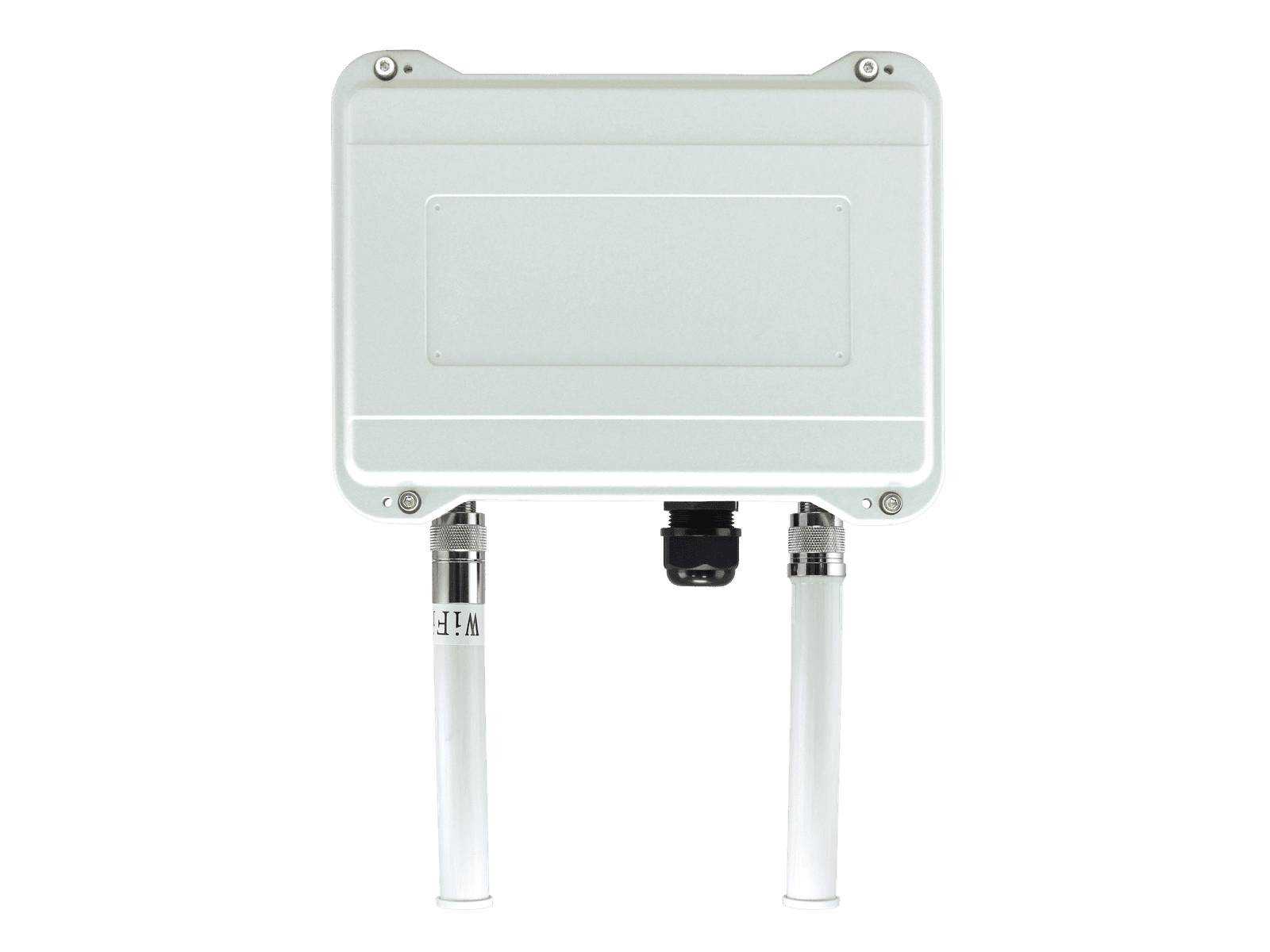

GA-210W

UWB Waterproof Anchor

Description

The GA-210W, developed by GIPS Technology, is a waterproof UWB positioning anchor supporting TDoA/ToF modes, integrated into the GIPSense solution. Ideal for industrial and semi-outdoor environments, such as factories, large warehouses, ports/docks, construction sites, etc., it facilitates clients in establishing the necessary infrastructure for smart positioning.

Specifications

  • Low Band:3.5GHz-6.5GHz (UWB CH2/CH3)
  • High Band:6.5GHz-8GHz (UWB CH5/CH9)

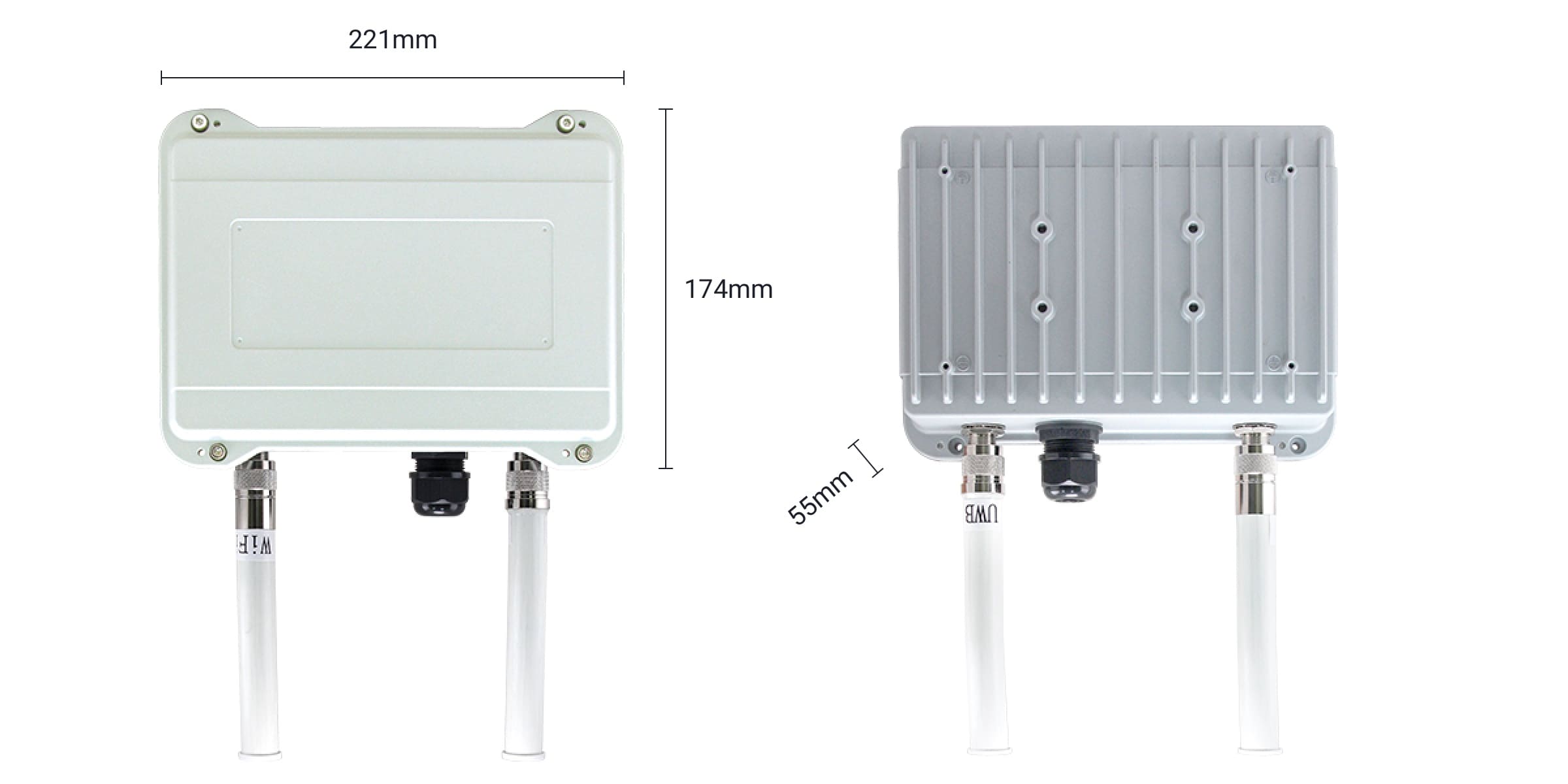

221 mm x 174 mm x 55 mm, without antenna


2.3 Kg


-20°C ~ 65°C


40°C @ 95% Relative Humidity, Non-condensing


  • 5V DC-in
  • Powered LAN (802.3af/at)

  • RJ45 connector
  • UWB antenna x 1
  • Wi-Fi antenna x 1

None


< 1.6W


Pole Mounting


  • GIPS_Anchor_Monitor_v1.0.0 (Windows Application)
  • GIPS_BLE_Monitor_v1.0.0 (Android APP)

NCC: Coming soon
