GT-460
Mini Type Tag
Supporting both TDoA and ToF positioning modes, the GT-460 helps customers build a smart positioning infrastructure to enhance productivity and operational efficiency. Its ultra-compact design allows easy integration into on-site equipment, wearable accessories, or mobile assets, making it especially suitable for environments with strict requirements on size and weight.
Description

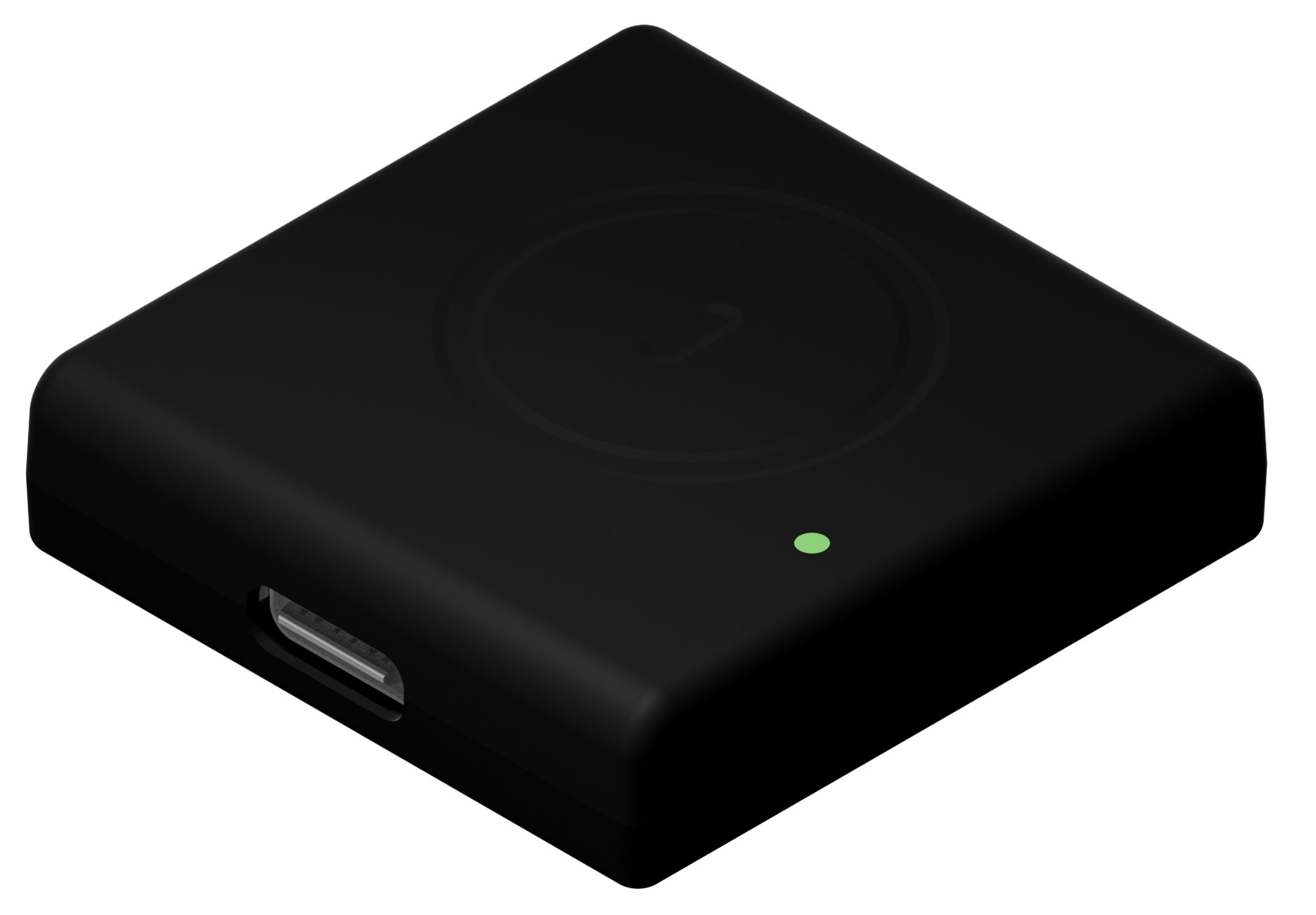

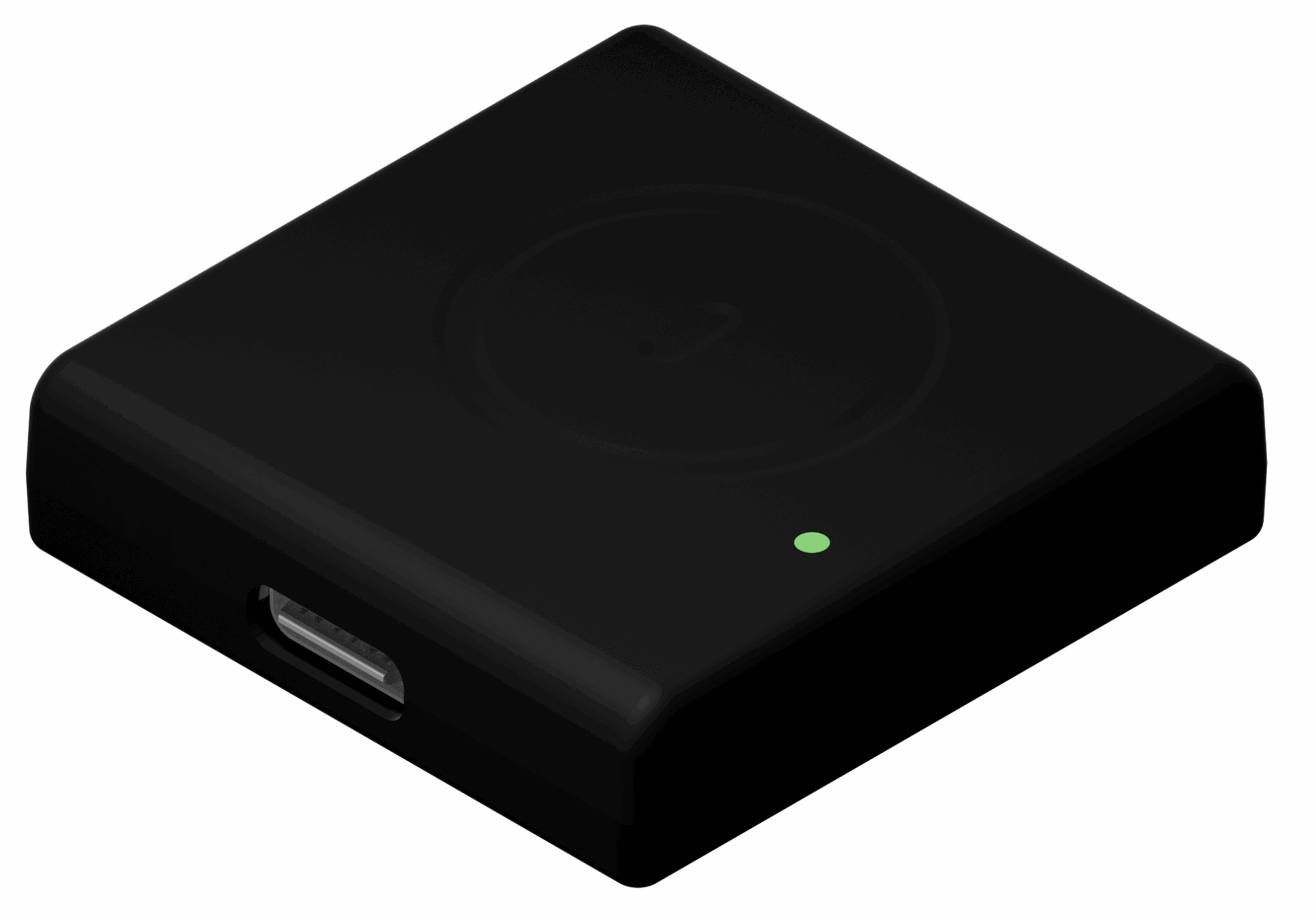

The GT-460 is a miniature UWB positioning tag developed by GIPS Technology. With its lightweight and compact form factor, it can be flexibly mounted on assets, tooling, worker belts, patient wristbands, or various objects. It is ideal for applications in commercial buildings, industrial facilities, healthcare environments, and logistics operations.
Specifications
UWB Working Frequency
4492.8MHz (CH3)

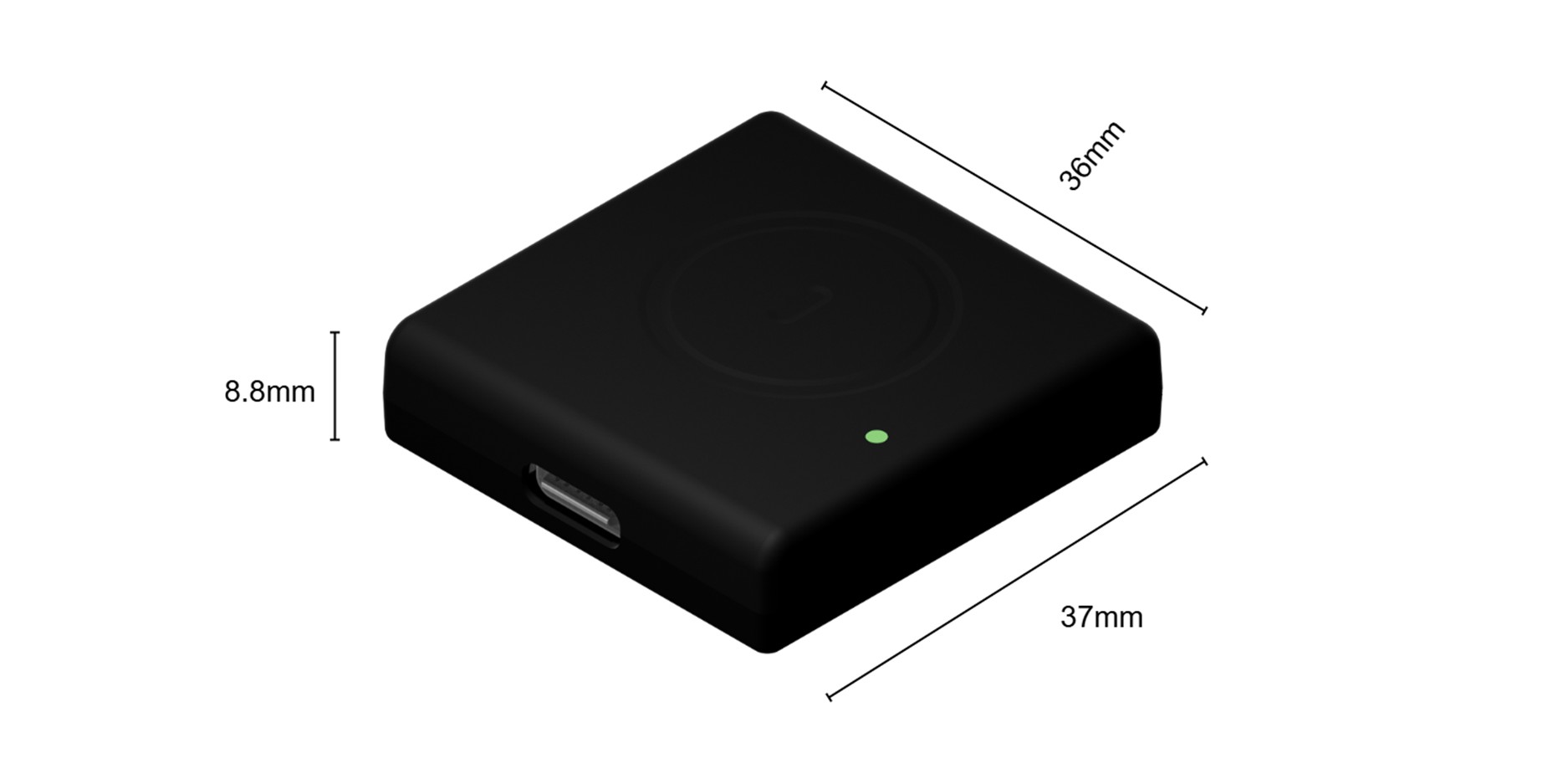

Dimensions (mm)
37 x36 x 8.8 mm
Weight
14 g
Operating Temperature
-20°C ~ 60°C
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Power Supply
5V DC-in w/ Type-C cable
External I/O
1 x Function Button
LED Indicator
1 x System Status (Charging/ Location/ Flash Alert)
Battery Life
- ToF: 1 week@1Hz w/ smart sleep
- TDoA: 3 weeks@1Hz w/ smart sleep
Functions
- SOS alert
- Smart Rest Mode
- Buzzer
- RFID
IP Ratings
IP X5
Screen
N/A
Compliance
- FCC: 2A6S5-GT460
- NCC: Applying
- Telec(JP): Applying
